Supported standards and protocols
IEEE 802.11g, IEEE 802.11b, CSMA / CA with ACK, using IEEE 802.11n (draft 2.0) wireless technology
Bus type: USB 2.0
Frequency range: 2.4 ～ 2.4835GHz
Transmission rate: 11n: up to 150M
11g: 6/9/12/18/24/36/48 / 54Mbps (adaptive)
11b: 1/2 / 5.5 / 11M (adaptive)
Number of working channels: 13
Data modulation: 11b: CCK, DQPSK, DBPSK
11g: OFDM
11n: OFDM with PSK, BPSK, 16-QAM, 64-QAM
LED indication: None
Dimensions:
(L x W x H) 18.9mm × 14.8mm × 6.85mm
Use environment
Working temperature: 0 ℃ to 40 ℃
Storage temperature: -40 ℃ to 70 ℃
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing
Supported operating system: Windows XP / Windows Vista / Windows 7 / Windows 8 / Windows 8.1

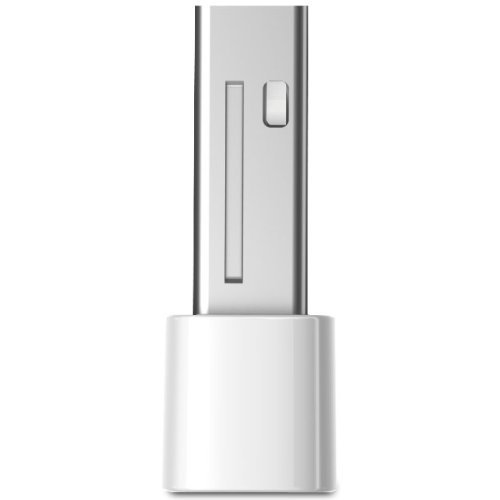

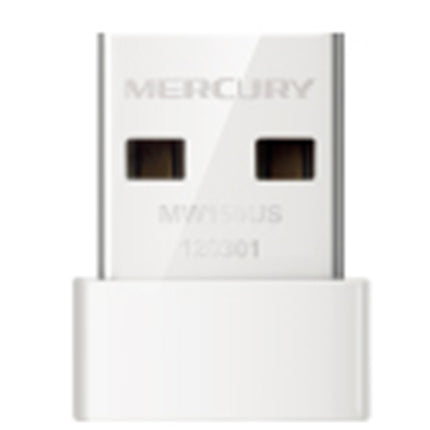

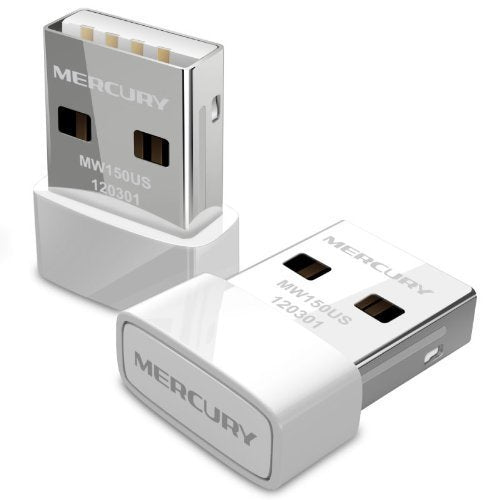

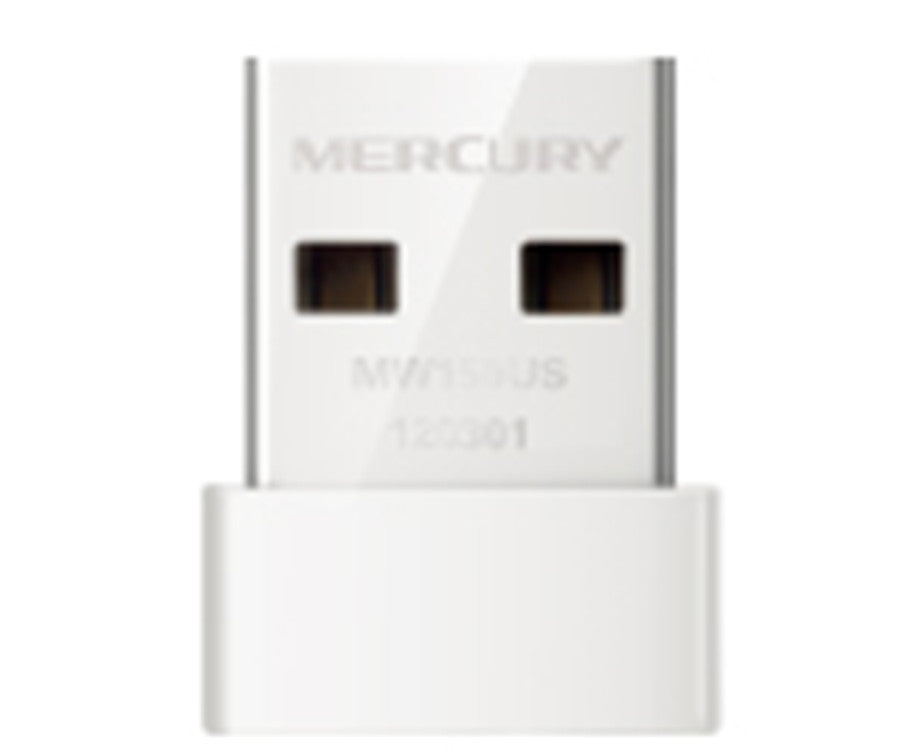

Using the new mini-shape design, exquisite and compact, easy to carry and save space
Compatible with some Internet TVs, IPTV set-top boxes, HD players
Using 11N wireless technology, the wireless transmission rate is up to 150Mbps, making the data transmission in the LAN more efficient
Support analog AP function, simply set to analog AP mode, you can easily build a wireless LAN
Built-in high-performance smart antenna
Support WEP, WPA / WPA2, WPA-PSK / WPA2-PSK and other advanced encryption and security mechanisms
Provide A type USB interface
Comply with IEEE802.11g, IEEE802.11b standards
Support wireless roaming (roaming) technology to ensure efficient wireless connection
